PT16 Din Rail Push-In Terminal Block, 16mm² Electrical Feed-Through Cable Plug Screwless Terminal Strip Wire Connector

Name: PT16 Din Rail PushIn Terminal Block 16mm Electrical FeedThrough Cable Plug Screwless Terminal Strip Wire Connector
Brand: JIVTO
Price: 1 USD

Quality PT16 Din Rail Push-In Terminal Block, 16mm² Electrical Feed-Through Cable Plug Screwless Terminal Strip Wire Connector for sale

Brand Name : JIVTO

Model Number : PT 16

Place of Origin : China

MOQ : 10000 pcs

Payment Terms : T/T, Western Union, L/C

Delivery Time : 30-40 Business days

Material : Nylon PA66

Color : Grey, Blue, other color can be customized

Length/Wide/Height (mm) : L75.4/H52.6/W12.2 mm

Connection method : Push-in connection

Contact Now

TECHNICAL PARAMETERS

Type No.	Details	Accessories
PT 16	1000V/90A 0.5-25mm²/0.5-16mm² L75.4/H52.6/W12.2 mm	End cover: D-PT 16
		Plug-in bridge: FBS 2-12
		Marker strip: ZB10

Model Number	PT 16
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	L75.4/H52.6/W12.2 mm
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	1000V/90A
Cross section, solid/soft Cable	0.5-25mm²/0.5-16mm²
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	Customized logo are supported

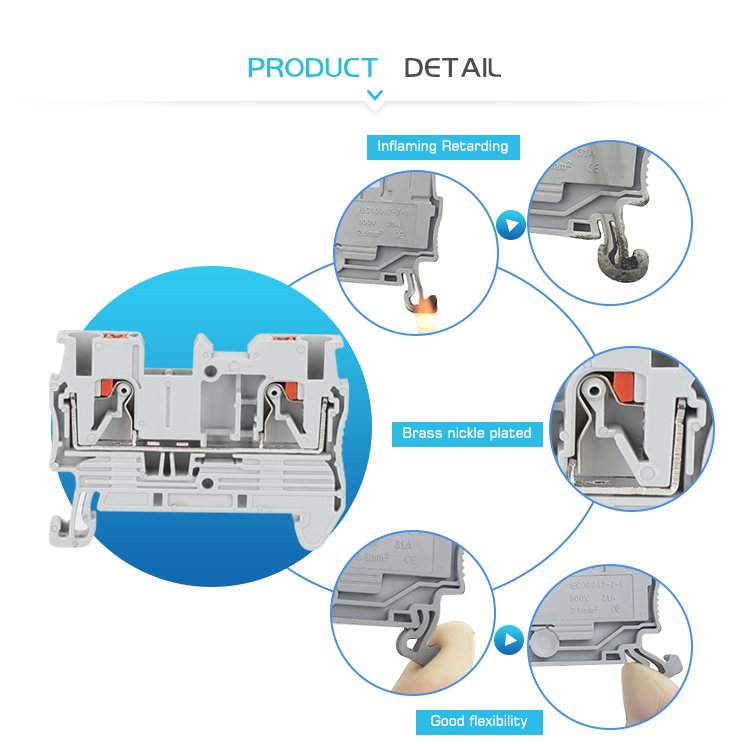

PT16 Din Rail Push-In Terminal Block, 16mm² Electrical Feed-Through Cable Plug Screwless Terminal Strip Wire Connector

PT16 Din Rail Push-In Terminal Block, 16mm² Electrical Feed-Through Cable Plug Screwless Terminal Strip Wire Connector Images
